Long Life Forklift Rear Wheel Bearings 780709K 780709H

Brand Name : SFT

Model Number : 780709K 780709H

Place of Origin : CHINA

MOQ : 100

Payment Terms : L/C, D/P, T/T, D/A, Western Union, MoneyGram

Application : Forklift truck and so on

Applicable Industries hotels, Garment Shops, Building Material Shops, Manufacturing Plant, Machinery : 8 - 160 mm

Precision Rating : P0 P6 P5 P4 P2

Number of Row : Single row

Type : Roller

Material : Chrome Steel GCR15

Cage : Steel Cage.Copper Cage

Lubrication : Grease

Quality : ABEC1

Contact Now

Product Overview:

The 780709K is a high-quality tapered roller bearing specifically designed for forklift applications. Renowned for its exceptional load capacity, durability, and reliability, it is a critical component in ensuring smooth operation and efficient performance of forklifts.

Key Features and Benefits:

High Load Capacity: The tapered roller design handles heavy radial and axial loads, making it suitable for demanding forklift operating conditions.

Exceptional Durability: Manufactured from high-quality steel and advanced heat treatment processes ensure extended bearing service life.

Reliable Performance: Precision manufacturing tolerances and strict quality control ensure reliable bearing performance in various applications.

Easy Installation: Standardized dimensions and design facilitate easy bearing installation and replacement.

Applications:The 780709K bearing is widely used in various forklifts, including: Electric Forklifts,Internal Combustion Forklifts,Warehouse Forklifts,Heavy-Duty Forklifts

Technical Specifications:

Bore Diameter: 45 mm

Outside Diameter: 85 mm

Width: 33 mm

Dynamic Load Rating: 108 kN

Static Load Rating: 120 kN

Limiting Speed: 4000 rpm

Why Choose 780709K?

Enhanced Forklift Performance: Ensures smooth operation, improving work efficiency and productivity.

Extended Service Life: Reduces downtime and maintenance costs.

Reliable Quality Assurance: From a trusted manufacturer with guaranteed quality.

Catalogue of our bearings

Bearing MODEL	Specification (mm)
Bearing MODEL	inside diameter	outside diameter	outside height
180705C	25	70	23
180705D	25	78	22
180705K	25	80	22
180706K	30	91.5	24
180707K	35	102	25.5
180708K	40	109.7	32
180709K	45	119	29
10310RT	50	123	40
CG92310T	50	123	34
780310	50	130	40
10311T	55	151.5	45
80611K5T	55	149	45
10311TK	55	151.5	45
30311XT/30311MT	55	151.5	45
10220D	100	205	52
10724	120	245	66
80511Y/980811	55	121/119	34
980811NT	55	119.2	34
10811S	55	118.5	34
980811M	55	118.8	34
80511K2T	55	120	34
80511K1T	55	119.6	34
80511YET	55	119/117	34

Forklift Mast Roller Bearing is used in a very important metal parts, forklift truck work in the hair bearing play an
irreplaceable role.Industrial handling vehicles are widely used in ports, railway stations, airports, freight yard, workshop, warehouses,distribution centers and distribution centers, and access to the cabin, carriages and containers for loading and unloading pallets, handling operations.Fork Lift Bearings are a blend of simple design and assembly. A pillow bearing has deep groove ball bearing, which is sealed on both sides and a spherical diameter on the outside with housing. The housing is either a casting or a sheet metal stamping. The Fork Lift Bearings are resistant to temperatures, dimensionally accurate and have high functionality.

Forklift Mast Roller Bearing lubrication, first open the cover and watch to check the release bearing wear, if they are recognized bearing no damage or wear is not overrun, remove the clutch pedal adjustment mandrel release bearing and its seat back to the last position,butter filling to the bearing hole with a needle nose grease gun until the bearing oil spill, then slightly turn the bearing oiling again, repeat the above work, a little butter until around the bearing has an overflow, and then the bearing rotation observed oilIf you feel the the bearing rotation resistance,that bearings have been filled with butter. Then clear separation of a small amount of butter, and re-adjust the separation bearing position throughout the bearing seat overflow

Forklift Mast Roller Bearing Precautions
1, To keep the forklift bearing its surroundings clean Even if the the invisible smile dust into the forklift bearings will increase bearing wear, vibration and noise.2, Using the installation to be carefully Not allow powerful punch forklift bearing, does not allow a direct hit with a hammer, and not allowed to pass through the rolling pressure.3, The use of appropriate, accurate installation tools To make use of a special tool, and tried to avoid using something like cloth and short fiber.4,To prevent the corrosion of forklift bearings Handle forklift bearing directly to wash hands sweat, and coating quality mineral oil and then operate, with particular attention
to anti-rust during the rainy season and summer.

Long Life Forklift Rear Wheel Bearings 780709K 780709H

Product Tags:

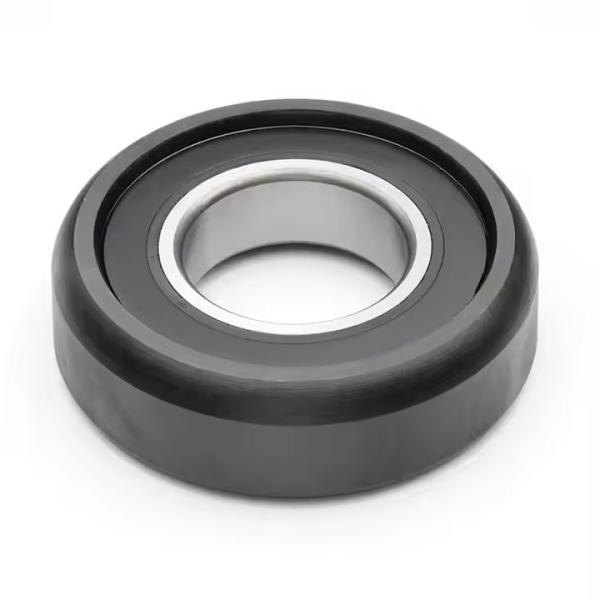

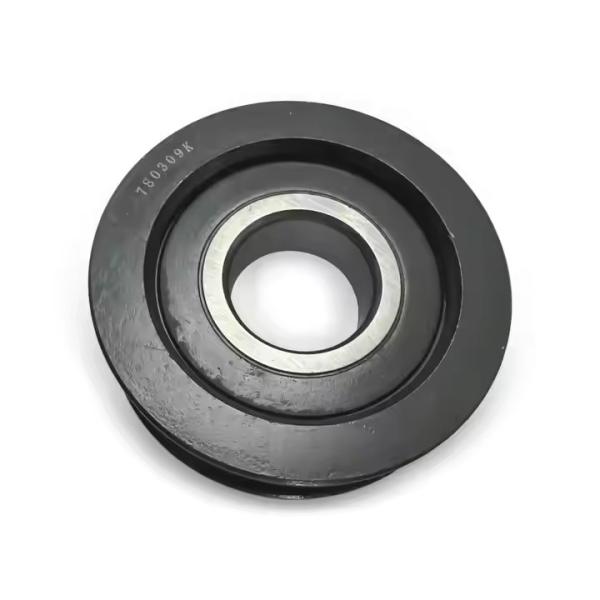

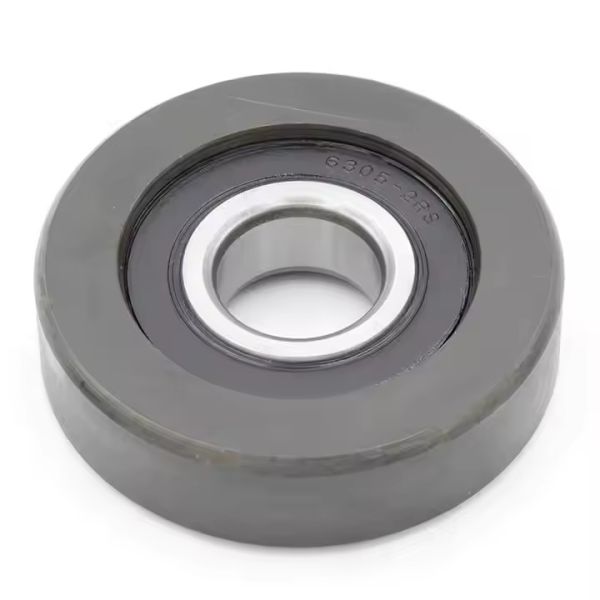

Long Life Forklift Rear Wheel Bearings 780709K 780709H Images
