RCB061014 RCB 061014 Single Direction Clutch Drawn Cup Needle Bearing

Brand Name : SFT

Model Number : RCB 061014

Place of Origin : CHINA

MOQ : 500

Price : 1-50USD/PC

Payment Terms : T/T, Western Union, MoneyGram

Supply Ability : 5000PCS

Delivery Time : 45 days

Packaging Details : neutral

Torque capacity : 4.83Nm

Inner diameter : 9.525mm

Outer diameter : 15.875mm

Type : Needle

Needle Material : GCr15

Thickness : 22.22mm

Contact Now

Product Description

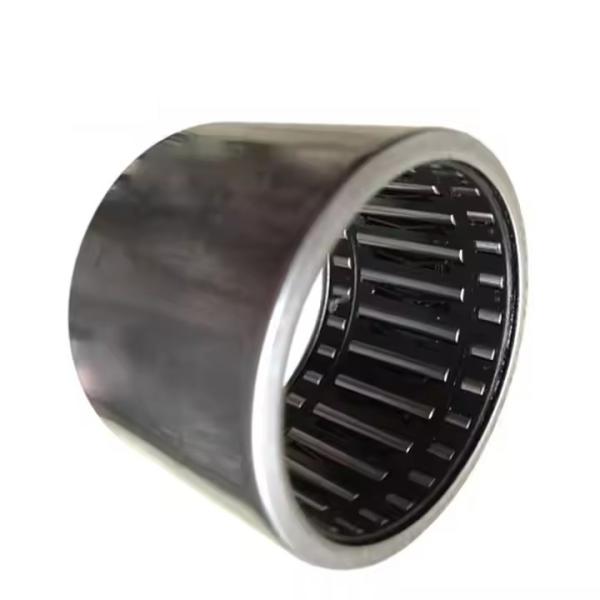

RCB061014 RCB 061014 Single Direction Clutch Drawn Cup Needle Bearing

Features of RC Needle roller bearing

♦Three pieces needles equipped to be locking assembly function.
♦Torque increases double of the normal HF Model.
♦Allow high indexing frequencies due to their low mass .

Catalogue of RC needle roller bearing for your choice

RCB061014 RCB 061014 Single Direction Clutch Drawn Cup Needle Bearing

Bearing Designation	Mass Approx	Designation
	Mass Approx	Fw	D	C	Torque
	g	mm			Nm
RC02	2	3.175	7.15	6.35	0.32
RC040708	3.5	6.35	11.112	12.7	2.03
RC040708-FS	3.5	6.35	11.112	12.7	2.03
RC061008	4.7	9.525	15.875	12.7	5.45
RC061008-FC	4.7	9.525	15.875	12.7	5.45
RC081208	9.2	12.7	19.05	12.7	8.84
RC081208-FS	9.2	12.7	19.05	12.7	8.84
RC101410	14.5	15.875	22.225	15.88	16.9
RC101410-FC	14.5	15.875	22.225	15.88	16.9
RC121610	16.2	19.05	25.4	15.88	23.3
RC121610-FS	16.2	19.05	25.4	15.88	23.3
RC162110	17	25.4	33.338	15.88	49.6
RC162110-FC	17	25.4	33.338	15.88	49.6
RCB061014	12	9.525	15.875	22.22	4.83
RCB061014-FS	12	9.525	15.875	22.22	4.83
RCB081214	16	12.7	19.05	22.22	7.9
RCB081214-FC	16	12.7	19.05	22.22	7.9
RCB101416	21.3	15.875	22.225	25.4	15.4
RCB101416-FS	21.3	15.875	22.225	25.4	15.4
RCB121616	26.5	19.05	25.4	25.4	20.9
RCB121616-FC	26.5	19.05	25.4	25.4	20.9
RCB162117	44.8	25.4	33.338	26.99	45
RCB162117-FS	44.8	25.4	33.338	26.99	45

High Precision and Quality: The RCB061014 bearing is designed with a precision rating of P0, ensuring high accuracy and reliability in various applications.
Wide Range of Industries: This bearing is suitable for various industries, including manufacturing plants, machinery repair shops, retail, printing shops, construction works, and energy & mining, catering to diverse user needs.
Long-lasting Torque Capacity: With a torque capacity of 4.83nm, this bearing can withstand heavy loads and provide consistent performance.
Quick Delivery: We offer fast delivery times, with 1 day for sample orders and 5-7 days for bulk orders, ensuring timely receipt of the product.
Economical and Compact Design: The bearing's compact size (9.525mm inner diameter, 15.875mm outer diameter, and 22.22mm thickness) and lightweight (12g) make it an economical choice for various applications.
